Microprocessor Controller, 48 x 48 (1/16 DIN), dual 4 digit display, 4 keys, Universal Inputs configurable from faceplate
• Accuracy better than 0.2% f.s. under nominal conditions
• Control output: relay, logic, Triac, continuous, digital insulated
• Hot/cold function with selection of cooling fluid
• 3 alarms with completely configurable function
• Analog retransmission output
• Isolated digital input with configurable function
• Auxiliary input for CT (TA) (50mAac)
• Heater break or probe short-circuit alarm
• Self-tuning, Auto-tuning, Soft-start, bump less Man/Auto function
• Double set, set ramp, timed output function
• Optically isolated RS485 serial line. Protocol: GEFRAN CENCAL or MODBUS RTU • Self-diagnosis • Rapid configuration from PC with Winstrum

Accuracy better than 0.2% f.s. under nominal conditions Up to 5 outputs, relay, logic, for control, alarms Hot/cold function with selection of cooling liquid 3 alarms with completely configurable function Software alarm for load interrupt or probe in short circuit (LBA) Self-tuning, Auto-tuning, Soft-start, bump less Man/Auto function Double set, set ramp, timed output function Setpoint programmer functions with 3 configurable steps.

Performance Level 'c' - 4...20mA output
The ME Performance Level ‘c’ series of Gefran are
Pressure transmitters for use in high temperature environment.
The main characteristic of this series is the capability of
Measuring temperature of the media up to 752 F (400°C) such as high temperature engineered polymers.

The constructive principle is based on the hydraulic transmission
Of the pressure.
The fluid-filled system assures the temperature stability.
The physical measure is transformed in an electrical measure
by means of the strain-gauge technology.

MAIN FEATURES
• Pressure ranges from:0-250 to 0-30000 psi  / 0-17 to 0-2000 bar
• Accuracy: < ±0.25% FSO (H); < ±0.5% FSO (M)
• Fluid-filled system for temperature stability
• Mercury filling volume:ME0 (30mm3); ME1, ME2, ME3 (40mm3)
• 1/2-20UNF, M18x1.5 standard threads; other types available on request.
• Auto-zero function on board / external option
• Standard diaphragm is 15-5 PH stainless steel with GTP+ coating
• 17-7 PH corrugated diaphragm with GTP+ coating for ranges below 1500 psi -100 bar
   GTP+ (advanced protection) Coating with high resistance against corrosion, abrasion
   and high temperature

AUTOZERO FUNCTION
All signal variations in the absence of pressure can be eliminated by using the Auto-zero function.
This function is activated by closing a magnetic contact located on the transmitter housing.
The procedure is permitted only with pressure at zero

The "IMPACT" (I) series of Gefran are pressure transmitters, without transmission fluid, for using in high temperature environment
(662°F or 350°C).

Medium pressure is transferred directly to the sensitive silicon element through a thick diaphragm.

The micro structure includes the measurement membrane and piezo resistors.

Strain is transduced by a micro-machined silicon structure (MEMS). The operating principle is piezo resistive.

The minimum deflection required by the sensitive element makes it possible to use very robust mechanics.

The process contact membrane can be up to 15 times thicker than the membrane used in traditional Melt sensors.

The Impact (I) series is the right choice for Mercury free, and for absolute absence of filling fluid, for use in food and medical application.

Superior wear resistance is suitable with filled polymers.
High robustness towards the process: cold starts, multiple installation
Low thermal drift for Zero e Span signal : < 1%FS (68°F- 662°F)
High resistance to withstand to dynamic pressure

Attributes

Performance Level "C" compliance
Auto zero function on board / external option

Pressure ranges: 0-1500 to 0-15000 psi/0-100 to 0-1000 bar
Accuracy: < ±0.25% FSO (H); < ±0.5% FSO (M)
Standard threading 1/2-20UNF, M18x1.5; with other versions on request
Other types of diaphragms are available on request too
15-5 PH stainless steel diaphragm GTP coated

This power controller is a Thyristor-type power solid state relay designed to control a 3-phase asynchronous motor in two directions.

There are two control signals and an internal logic that permits selection of only one direction at a time.

A red LED indicates reverse, and a green LED indicates forward.

The power Thyristor are protected against excessive voltage fluctuation by RC snubbers and varistors incorporated in the unit.

It is advisable to install three high-speed fuses between the 3-phase line and the controller.

WARNING: The GI models must be used in conjunction with an appropriate heatsink (Accessory). Installation must precisely observe the warnings contained in the installation notes.

Attributes

Solid state inverter for forward/reverse control of three-phase motors up to 4KW

Solid state contactor for reverse/forward control for 3-phase motors up to
4 KW - 400 Vac
Nominal voltage max.: 400 VAC
Non-repetitive voltage up to 900 VP
Isolation (input/output) 4000 VAC
Input control: 5…32 VDC
IP20 direct contact protection
Integrated voltage transient protection
LED indication of motor direction
In Conformity with EN60947-4-3 and UL508

These are zero crossing, AC solid state relay with logic signal control, built in heat sink with heater break diagnostics (Hb function), adjustable setpoint and selectable current scale with junction overheat protection available as an option. Click here to view the two options

The GD series of solid state relays are offered with 40A currents ratings and voltage 480 VAC, and VDC input control signal.

Voltage transistors are protected by MOV (varistor).

Thanks to their high performance, they are appropriate for very short switching times, with millions of operations without wear on components.
The GD series of relays must be used with an appropriate heatsink.
Non-repetitive voltage: 1200 Vp
Rated voltage: up to 530VCArms
Input control range: 5…30 VDC
Optical isolation: 4000Vrms (input/output)
Built-in HB diagnostics (partial heater break, junction in short circuit)
Overheat protection (optional)
2-color control signal LED in input/alarm state
On-board MOV (varistor)

They are specifically designed for melt pressure measurement. They are available only to be used in large scale fixed installations or in large scale stationary industrial applications like extruders, or for B2B equipment laboratory for Research and Development. (See informative note RoHS II).

Description:
The MX4 is flange Mounting
Pressure ranges: 0-360 to 0-30000psi 0-25 to 0-2000bar.
Extensometric measurement principle with Wheatstone bridge
(This is a device to measure changes in the length of an object. It is useful for stress-strain measurements and tensile tests)
Precision: < ±0.25% FSO (H); < ±0.5% FSO (M)
Calibration signal 80% FSO internally generated
Standard diaphragm is 15-5 PH stainless steel with GTP coating
17-7 PH corrugated diaphragm with GTP coating for ranges below 1500 psi  or 100 bar

Click here to build your MX4

>3.33 mV/V output signal.
>Pressure ranges from 0-35 to 0-2000 bar / 0-500 to 0-30000 psi
> Fluid-filled system for temperature stability
> Accuracy: <±0.25% FSO (H); <±0.5% FSO (M)

The main characteristic of this series is the capability to read temperature of the media up to 400°C.
The constructive principle is based on the hydraulic transmission of the pressure. The fluid-filled system assures the temperature stability.

The physical measure is transformed in an electrical measure by means the strain-gauge technology.
Description

Pressure ranges from: 0-500 to 0-30000 psi / 0-35 to 0-2000 bar
Strain gage Wheatstone bridge
Accuracy: <±0.5% FSO (M) <±0.25% FSO (H);
Fluid-filled system for temperature stability
Grade of protection: IP65 (6-pin connector version)
Standard diaphragm is 15-5 PH stainless steel with GTP coating
Internally generated 80% calibration signal (R-Cal)
1/2-20 UNF, M18x1.5 standard threads; other types available on request
Fully interchangeable with all existing brands
17-7 PH corrugated diaphragm with GTP coating for ranges below 100 bar-1500 psi
Other diaphragms available on request

Single display controller Microprocessor controller, format 48x48 (1/16 DIN) manufactured using SMT.

This instruments provides a complete operator interface, protected by a Lexan® membrane that ensures level IP65 faceplate protection.

The 400 model has 4 keys, 4 digits display, and 2 indicating LED's 3 indicating LED's
For 401 model a further 3 LED's bar-graph.

The main input for the process variable is universal and provides the possibility to connect many types of input sensor:

Thermistor PTC
Thermocouple type J, K, R, S, T, B, E, N
Resistance thermometer PT100 3-wires
Linear inputs 0...60mV, 12...60mV, 0...20mA, 4...20mA, 0...10V, 2...10V

The type of input is selected from the faceplate keys and no external adapter or shunts are necessary.

Model 401 can have an auxiliary input for a 50mAac current transformer to monitor the load current.

It is also possible to set an alarm point related to the current transformer input in order to check eventual load malfunction.

Both instruments have 2 (3 for 401 model) relay (5A/250Vac, cosφ=1) or static (10Vdc/30mA) outputs with Heat, Cool or Heat/Cool not overlapping and/or alarm function.

All the programming procedures of the instruments are facilitated by the grouping of the parameters in function blocks (CFG for the control parameters, “Inp” for the inputs, “Out” for the outputs, etc.) and by the possibility of selecting a simplified menu for entering the most frequently used parameters.

To simplify the configuration even further, a programming kit is available for PC, which includes a menu driven configuration program for Windows and the necessary cable to connect the instrument.

Password protection can be used to restrict the levels of editing and displaying the configuration parameters.

Zero-voltage switching. Current range: 15A to 90A

• -  Alternating current solid state relay
• -  Zero crossing switching
• -  Non-repetitive voltage: up to 1600Vp
• -  Nominal Voltage: up to 600VCAms
• -  Copper/semiconductor coupling technology
• -  10, 25, 50, and 90 Arms nominal current
• -  Control voltage:  3...32Vcc and 20...260Vac/Vcc with connector
• -  Isolation (input-output) 4000Vrms
• -  Red LED drive active signal
• -  Internal MOV (optional)

Plus there’s Gefran GTS Series Solid State Relays (SSRs) with built in heat sinks as below:

Current range: 15 A to 120A
Zero-voltage switching

• - Versions with TRIAC and with double SCR in antiparallel
• - Input control from logic signal
• - Switching at voltage zero crossing
• - MOV protections (varistor)
• - LED power on indicator
• - Fastening to DIN bar (standard); fastening to panel (optional)

If you need technical help selecting a solid state relay for your application, give us a call 800-849-5655 or click here to send us a note.

The M92 is a melt pressure and temperature monitoring system which comes complete with the following items:

• -   M32-6-M-xxxx-1-4-D-000 (melt pressure transducer with type “J” thermocouple)
• -   40TB-10-RR-R-2-0-1 (1/4 DIN pressure and temperature indicator)
• -   C08WLS (25 foot 6-pin cable)
• -   SF18 (mounting bracket)

The M92 is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price on line.

The Gefran Indicator details:

• -  Economically priced
• -  Displays pressure in a 4-digit LED display
• -  Auto span
• -  Auto zero
• -  Auto calibration
• -  Touch-type keypad
• -  2 alarms with adjustable setpoint
• -  Filter for digit stabilization
• -  Built-in strain gage bridge excitation
• -  Coded access for user lockout

The Gefran Transducer details:

• -  Fluid-filled system for temperature stability
• -  Better than ±0.50% accuracy
• -  80% output signal for easy calibration
• -  15-5 PH stainless steel diaphragm with GTP coating

We’re here too for technical assistance, so just call 800-849-5655 or send us a note.

Pressure ranges:
0-100 to 0-1000 bar / 0-1500 to 0-15000 psi

Medium pressure is transferred directly to the sensitive silicon element via a thick diaphragm. Strain is transduced by a micro-machined silicon structure (MEMS). This operating principle is called piezo resistive. The micro structure includes the measurement membrane and piezo resistors. The minimum deflection required by the sensitive element makes it possible to use very robust mechanics. The process contact membrane can be up to 15 times thicker than the membrane used in traditional Melt sensors.

Performance Level "C" compliance
Pressure ranges: 0-1500 to 0-15000 psi/0-100 to 0-1000 bar
Accuracy: < ±0.25% FSO (H); < ±0.5% FSO (M)
Auto zero function on board / external option
Standard threading 1/2-20UNF, M18x1.5; other versions on request
Other types of diaphragms are available on request
Auto zero function on board / external option
15-5 PH stainless steel diaphragm GTP coated

Contact us for all your Gefran needs 800-849-5655 Esales @peproducts.com

The GFX4-IR is a four independent loop controller, designed to manage electrical power.
It is a compact unit combining different technological elements like:
       • Controller
       • Current transformers
       • Solid state relay
       • Fuses-holders (option)

The GFX4-IR is managed by a microprocessor that independently controls the 4 control loops and also runs functions specifically designed to manage single phase and three phase loads, with low and high temperature coefficient, short wave and medium infrared lamps, and transformer primary circuits.
In terms of space and cabling it provides a significant cost saving.

The multiple activation methods are all software-configurable, and include:
- Zero crossing with constant cycle time for conventional loads
- Burst firing with variable cycle time for systems with low thermal inertia, medium wave

IR lamps
- Single cycle for short wave IR lamps with reduced flickering (half single cycle)
GFX4IR runs complete diagnostics of current, voltage, and temperature levels.
- Phase angle control with current limit for short wave IR lamps, transformer primaries, with assignment of soft start up and soft stop down options with limitation of maximum rms current.

Current
- Total and partial interrupted load alarm
- “Teach-in” function for self-learning of alarm threshold for interrupted load
- SCR in short circuit alarm
- Load in short circuit or in overcurrent alarm
- Unbalanced 3-phase load alarm

Temperature
- Over temperature alarm
Various feedback functions in the absence of PID control have been developed for complete control of loads in all types of applications:
- Voltage feedback (V) with current limit
- Current feedback (I)
- Power feedback with maximum power limit

Controller
30, 60, 80kW solid state relay
DIN rail or panel mounting
Current transformers
4 configurable output (option):
Relay / logic / TRIAC / continuous
Fuses-holder (option)
4 universal main inputs
4 main output internally wired to the SSR
4 heat/cool independent PID
4 auxiliary analog inputs (option)
Standard digital communication:
Modbus RTU
2 configurable relay alarm output
2 digital inputs
Optional Fieldbus communication:
Profibus DP, CANopen, Euromap66,
DeviceNet, Modbus RTU, Modbus TCP,
Ethernet IP

Configuration is changed by setting simple parameters with a software tool that guides the user to a correct and safe configuration. GFX4-IR dialogs with the operator terminals according to the most popular protocols: from the simple and efficient Modbus to (via a second optional fieldbus communication) the by-now indispensable Profibus DP, CANopen, DeviceNet, Modbus RTU, Ethernet Modbus TCP, and Ethernet IP.

The product comes with a standard configuration that is simple and quick to modify, for example, to assign different functions to outputs.

PROFILE The 40 TB is a microprocessor based, 2-channel alarm unit, format 96x96 (1/4 DIN), manufactured with SMT.

The operator interface is comprehensive and efficient, with two process variables and two 4-digit displays, and engineering unit indications.

Three LEDs indicate the output status, while 3 more LEDs can be configured to indicate different functional conditions.

It is also equipped with a red LED bar graph, which can be associated to process variables and to peak values.

The instrument has a Lexan membrane faceplate with 4 keys (guaranteed to IP65).

Channel 1 has strain gauge, pressure or force sensor inputs, with positive or symmetrical polarizations, calibration with sensitivity auto-calculation (from 1,5 up to 4 mV/V), indication of probe power supply break.

The first input channel can also receive signals from potentiometers with 100 Ohm min. resistance.

The second input channel can be configured for inputs from temperature sensors (TC, RTD, PTC, NTC) and for mV, V, mA signals, with the ability to have of having a customized input for each kind of sensor.

The A/D converter performance can be configured via keyboard, so that different options of sampling time can be selected, depending on the desired resolution.

Sampling time can be as low as 15 milliseconds, while resolution can reach a maximum value of 16,000 divisions (by a 120 milliseconds. sampling time).

The selection of the different options is available from keyboard. There is the possibility of having two digital inputs from voltage-free contacts, configurable for functions such as reset, hold, flash, peak or memory reset control.

The serial communication option may have current loop, RS422/ 485 and RS232 connections with baud rate up to 19200.

The instruments can be equipped with up to three relay (5A/250V) or static (0-11Vdc) outputs. Two voltage or current analogue outputs are available for the retransmission of inputs, of alarm sets, of gross and tare values.

The option "transmitter power supply" is foreseen for each input channel. For channel 1 it could be: 1V (potentiometer), 5 and 10V (strain-gauge), 15 and 24V; for channel 2: 15 and 24Vdc.

The programming of the instrument is made easy by grouping the parameters in function blocks and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit containing connection cable and a menu guide program that runs under Windows (see technical data code 80020).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

If you can’t find what you need, or you are looking for a repair, send us an email with this link.

>Zero-voltage switching, optimized fast cycle time.

>Command input from current signal or analog voltage or potentiometer

>Current range: 25A to 120A, diagnostics and load interrupt alarm

>Antiparallel double SCR

>2 led for supply indication, “ON” state, 1 optional LED for load interrupt alarm

>Switching at voltage zero crossing

>Patriotization of wave train power with dynamically optimized time cycle

>MOV (varistor) Also known as voltage-dependent resistor (VDR)

>4000V isolation between input circuit and power output

>Optional monitoring of interrupted load

For all your Gefran Instrument needs, you can LOCATE YOUR PRODUCT and select the product with the options that you need.

Sensors
Instrumentation and control
Power controls

We are still here to help with selections via email sales@peproducts.com or call 800-849-5655.
Now you can shop at any time of the day or night and all five time zones.

Overview
The K3 Series are pressure sensors for use in high temperature applications where the process temperatures may reach 1000°F (538°C) such as high temperature engineered polymers. The K Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage. A near incompressible sodium-potassium (i.e. NaK) mixture is used for pressure transmission. NaK is FDA recognized safe (GRAS) substance.


Description
Pressure ranges from:  0-500 to 0-15000 psi / 0-35 to 0-1000 bar
Accuracy < ±0.25% FSO (H); < ±0.5% FSO (M)
Hydraulic transmission system for pressure signal guarantees stability at working temperature (NaK).
Liquid conforming to RoHS Directive. NaK is defined as a safe substance (GRAS)
Quantity of NaK contained per model: K30 series (0.00183 in3) (30mm3), K31-K32-K33 series (0.00244 in3) (40mm3)
1/2-20UNF, M18x1.5 standard threads; other types available on request
Inconel 718 diaphragm with GTP coating for temperatures up to 1000°F (538°C)
15-5 PH diaphragm with GTP coating for temperatures up to 750° (F 400°C)
Hastelloy C276 diaphragm for temperatures up to 570°F (300°C)
17-7 PH corrugated diaphragm with GTP coating for ranges below 1500psi - 100bar

MORE THAN JUST A DUAL PID CONTROLLER

There’s a new family of enhanced Controllers that inherits all the features and benefits offered by the award winning Gefran 650/1250/1350 series, adding more remarkable new features/benefits like:

• Large Display - clear, configurable, screen – largest display in the market.
• Dual PID control loops with ratio and cascade control capabilities.
• User-configurable scrolling alphanumeric messaging.
• Two high resolution isolated analog outputs for controlling / retransmitting.
• Two temperature sensor inputs.
• Dual Setpoint Programmer with 128 steps, with synchronous and asynchronous time base.
• Valve control models, with valve position feedback.
• Built-in Logic + Math functions - 32 Logic Function Blocks plus 8 Math Function Blocks.
• 5 Recipes of parameters stored on board.
• 8 digital I/Os + 8 Relay outputs available on the 1850 model.
• Energy monitoring function.
• Maintenance Minder function - Prevents system downtimes and production losses.
• 3 mode embedded timing functions.

• High performance, high IP rating, resistance to shock and vibrations, and high electromagnetic compatibility make this sensor suitable for mobile hydraulics applications.
• Made to guarantee a robust, high-performance solution for applications such as hoisting equipment, agricultural vehicles, and earth-moving machines.

• 4 configurable alarms, failsafe function
• 4 relay outputs with configurable function
• 4 digital inputs
• Expansion with 4 configurable digital inputs and/or outputs
• Double configurable input for strain gauge / potentiometer / linear signal / TC / RTD
• Two auxiliary analog inputs Differential measurement
• High precision: 0.1 % f.s. ± 1 digit
• Automatic calibration for 6-wire strain gauge
• Transmitter power supply and strain gauge probe power supply
• PID controls with 8 sets of selectable parameters
• Up to 3 isolated analog outputs for control and retransmission
• Serial communication interface:
  • RS485/RS 232 MODBUS RTU protocol (optional)
  • Profibus DP Slave (optional)
• Front panel with three 5-digit displays and two bar graphs

Requiring a precise and rapid mechanical transmission, these motors are designed to provide the highest level of achievability in acceleration and deceleration characteristics, allowing the highest level of dynamic performance productivity and controllability. The SBM motors are available in six frame sizes a wide continuous stall torque range (from 2 to 442 Nm) and speeds up to 4000 rpm.

Main applications:

• Used for supervision of industrial processes
• Is a gateway between field and mainframe
• Application in critical environments
• Control of machines and systems
• Data centralization
• Human-machine interface (HMI)
• Data display

Main features:

• 10.4”, 12.1”, 15” TFT Display
• High performance Large SSD
• Modular configuration
• Connectivity
• Easy access and maintenance
• Reduced depth
• No internal wires
• In conformity with UL508

The principle of measurement of the SB load cell series is the deformation caused by the shear generated by the applied load. They are compact load cells with an all stainless-steel construction that are extremely rigid towards the measured load and lateral or transverse loads.

The SB load cell series are the ideal solution for industrial weighing applications such as storage silos, weighing platforms and dosing systems.

Features:

• Corrosion resistant
• All stainless-steel construction
• Insensitive to lateral loads
• Low profile
• Class of protection: IP66 (DIN 40050)
• Accuracy class: D (OIML IR60)
• Range of measurement: from 500 to 5,000 Kg

These TU of load cells are designed for the measurement of static or dynamic loads in compression or traction. All of them are calibrated as load cells in units of mass (Kg). The TU series is supplied for nominal loads from 50 Kg to 1 T. This has an IP67 protection degree so it can be used in aggressive atmospheres often found in the chemical industries. The transducer body is machined from a single piece of stainless steel with no welding. This means that it is highly resistant to mechanical shock and vibration. The compact size means that these can be placed in positions that are difficult to acess and where little space is available.

Features:

• Compact size
• Grade of protection: IP67 (DIN 40050)
• Corrosion resistant
• All stainless steel construction
• Accuracy class: 0.2%
• Range of measurement: from 50 to 1,000 Kg

The GD series of solid state relays (zero crossing type) are solid state actuators with heater break diagnostics (Hb function), selectable current scale, and adjustable setpoint. Junction overheat protection is also an available option. An alarm signal is provided in output as well. The GD series of solid state realays are offered with currents of 40A, rated voltage 480 Vac, and Vdc input control signal. Voltage transistors are protected by MOV (varistor).

See the dissipation curves for other performance conditions. The GD series of relays must be used with an appropriate heatsink. Thanks to their high performance, they are appropriate for very short switching times, with millions of operations without wear on components. Various accessories are available, such as heatsinks, fuses and fuse holders.

Features:

Zero-voltage switching. Current range: 40A, diagnostics and load interrupt alarm

• AC solid state relays with logic signal control
• Switching at voltage zero crossing
• Built-in heatsink o Rated current: 25Arms, 40Arms
• Non-repetitive voltage: 1200 Vp
• Rated voltage: up to 530VCArms
• Input control range: 5…30 Vdc
• Optical isolation: 4000Vrms (input/output)
• Built-in HB diagnostics (partial heater break, junction in short circuit)
• Overheat protection (optional)
• 2-color control signal LED in input/alarm state
• On-board MOV (varistor)

These Gefran product are microprocessor controller, manufactured using SMT with a 48x48 (1/16 DIN) format.
It has a complete operator interface, protected by a Lexan® membrane that ensures a face plate protection level IP65.
It have 4 keys, 4 digits display, 2 indicating LED's for 400 model, and the 401 model has 3 indicating LED's and a further 3 LED's bar-graph.
The main input for the process variable and provides the possibility to connect many types of input sensor:

• Thermocouple type J, K, R, S, T, B, E, N
• Resistance thermometer PT100 3-wires
• Linear inputs 0...60mV, 12...60mV, 0...20mA, 4...20mA, 0...10V, 2...10V
• Thermistor PTC

From the faceplate keys is where the type of input is selected and no external shunts or adapter are required.
Model 401 can have an auxiliary input for a 50mAac current transformer to monitor the load current.
It is also possible to set an alarm point related to the current transformer input in order to check eventual load malfunction.
The 400 model has 2 (3 for 401 model) relays (5A/250Vac, cosφ=1) or static (10Vdc/30mA) outputs with Heat, Cool or Heat/Cool not overlying/or alarm function.

All the programming procedures of the instruments are handled by the grouping of the parameters in function blocks
(CFG for the control parameters, Inp for the inputs, Out for the outputs, etc.) and
so it’s possible to selecting a simplified menu for entering the most frequently used parameters.

To simplify the configuration even further, a programming kit is available for PC,
which includes a menu driven configuration program for Windows and the necessary cable to connect the instrument.

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.


Features:

• Universal input configurable from the faceplate
• Possibility of auxiliary input for current transformer 50mAac or 3rd alarm output,
• Self-tuning, Auto-tuning, Soft-start, Man/Auto function
• Accuracy better than 0,2% full scale at nominal condition
• Control output: relay or logic with Heat/Cool function
• 1 alarm with configurable function (up to 3 different alarm setpoints)
• Deviation bar graph indication
• Possibility to configure the unit by serial line logic or relay (only 401 mod.)

Solutions for hoisting machines from Gefran

Aerial platforms, hydraulic hooklift hoists for containers, forklift trucks, stationary or mobile cranes are machines that hoist goods and people and are subject to changeable weather and heavy working conditions for many hours in a row.


Aerial platforms, forklift trucks, hydraulic hooklift hoists for containers, stationary or mobile cranes are machines that hoist goods and people and are subject to changeable weather and heavy working conditions for many hours in a row.
These vehicles must ensure:

• precise control of main mechanical movements
• high immunity from electromagnetic fields
• reliability of instrumentation even under the most extreme working conditions
• high-performance sensors to guarantee vehicle and operator safety (rollover protection)

What is the Gefran Solutions for hoisting machines?
Gefran offers hoisting machine manufacturers a package of high performance, reliable and robust sensors for the main movements of these various machines such as:

• control of steering angle
• position of the cylinder that controls opening/closing of the vehicle’s mobile parts steering control
• hydraulic oil pressure
• control of position of independent suspensions

The solutions designed for these applications include potentiometric (with contact) and magnetostrictive (contactless) technologies for position control.
The Gefran Model KH pressure transducers control hydraulic circuit pressure and the weight of material loaded by the forklift or container hoist.

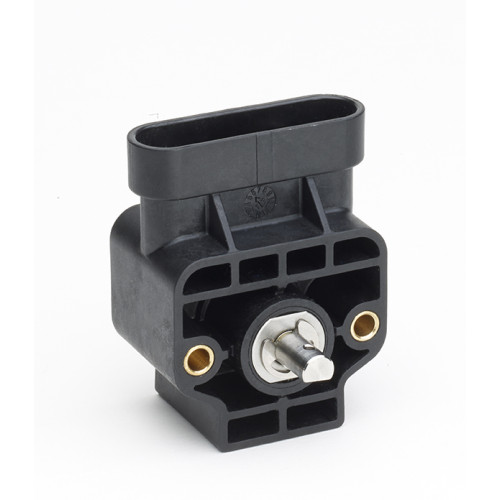

For aerial platforms, the high-precision GI inclinometer, GR rotary transducer, and GSF wire position transducer let you set the maximum extension of the operator cab to prevent rollover.

Your solutions for hoisting machines from Gefran can be found at www.Gefranonline.net

Elevator company’s needs are best satisfied with a custom solution based on an inverter in the ADL300 family with EPC (Elevator Positioning Control) software to
control the car position.

EPC calculates arrival ramps in real time so that the curve generated achieves millimetric alignment. Use in combination with the MI-KO-SIS control system provides the solution for releveling as well: at every misalignment with the car stopped and doors open, the system automatically corrects the position and returns it to level.

Lastly, because the ADL300 has a high overload value (200% of nominal current for 10 seconds), it can manage high starting current without overheating the inverter.

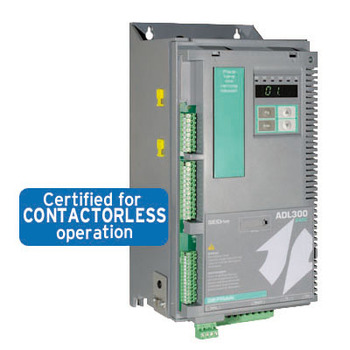

Other info on the ADL300

The ADL300 series can be used in all applications with geared or gearless technology and has the most important industry certifications based on current European standards for lifts and escalators, such as EN81-1:1998 + Amendment A3.

With regard to safety, the entire ADL300 series has SIL 3 certification according to EN61800-5-2 for contactorless operation.

The inverter also has the CE and UL/Ulc marks for lifts, obtained under the Elevator Controls and Accessories (FQMW/FQMW7) program.

Noisy external contactors between inverter power supply phases and the motor are replaced with silent internal electronic switches. The ADL300 significantly reduces switching noise and is therefore suitable for silent installations.

The ADL300 can operate in systems with CANOpen communication, with both DS301 and DS417 (CANOpen Lift) profile, as well as with communication based on DCP protocol both in position (DCP4) and speed (DCP3).

EPC calculates arrival ramps in real time so that the curve generated achieves millimetric alignment. Use in combination with the MI-KO-SIS control system provides the solution for releveling as well: at every misalignment with the car stopped and doors open, the system automatically corrects the position and returns it to level.

Because the ADL300 has a high overload value (200% of nominal current for 10 seconds), it can manage high starting current without overheating the inverter.
Other info on the ADL300
The ADL300 series can be used in all applications with geared or gearless technology and has the most important industry certifications based on current European standards for lifts and escalators, such as EN81-1:1998 + Amendment A3.

With regard to safety, the entire ADL300 series has SIL 3 certification according to EN61800-5-2 for contactorless operation.

The inverter also has the CE and UL/Ulc marks for lifts, obtained under the Elevator Controls and Accessories (FQMW/FQMW7) program.

Noisy external contactors between inverter power supply phases and the motor are replaced with silent internal electronic switches. The ADL300 significantly reduces switching noise and is therefore suitable for roomless installation.


The ADL300 can operate in systems with CANOpen communication, with both DS301 and DS417 (CANOpen Lift) profile, as well as with communication based on DCP protocol both in position (DCP4) and speed (DCP3).

 As a result, product warpage, distortion and reject rates are minimized.
For maximum product quality, the part can be isolated in an enclosed chamber with a vacuum atmosphere, to eliminate the effects of oxidation, but other treatment can require the supplement of chemical additives (protective gas)
Temperature regulation was also a key point: to optimize test phases of the treated material, the melting time had to be reduced as much as possible.
Traditional Vacuum Furnaces are large and powered by banks of electric heating elements: they require several hours to achieve and maintain temperature. In the induction furnace made by Linn, the temperature in the oven can rise from 650 degrees to 1100 degrees in 3/4 seconds!
The solution
The solution offered by Gefran is a system made by a compact hardware and a smart software application. The hardware is:

• 7 inches graphic touch panel, full color, with integrated controller (softplc).
• Remote I/O Gilogik II
• Fieldbus CANopen

The software application gives to Linn enough flexibility, reducing in the same time the programming effort. It offers:

• Up to 25 programs managements
• Each program can be made of up to 50 process steps, configurable. The user can configure / parameterize freely 10 different types of Step Process that for the creation of the program (guided programming)
• Trend Process Value
• Run / Ready / Pause / Skip Controls
• PID controller with autotuning
• Manual controls for machine setup
• Data log exportable in CSV files
• Alarm display, current and historical
• Recipes to manage and save configuration parameters
• Date &Time function for automatic start
• Multilingual
• Access management with user / password

Gefran Melt pressure sensors are designed to satisfy every need in plastics processing. Gefran is able to provide to its customers different Melt pressure transducers for different applications at high process temperatures, up to 1000°F.

Fluid free (I Series) IMPACT
The IMPACT series represents the innovative family of the Gefran high temperature melt pressure transducers designed on a patented fluid free technology.

 A silicon piezoresistive primary element together with a high intrinsic robustness let the IMPACT sensors to work at pressures up to 43511 PSI and to reach temperatures of 450 °F.

Oil-filled (W Series)
The oil-filled melt pressure sensors, designed by Gefran on an extensometric technology, are suitable to work at high temperature, up to 600°F, assuring a total compliance with the maximum levels of accuracy and of reliability.
Every single sensor of the W series, besides using a FDA approved filling fluid, if fully compliant with RoHS Directive.
The W serie Performance Level 'c' version is conform to the European standard EN1114-1 related to the safety requirements for extruders.

Sodium-Potassium (NaK) filled (K Series)
Between the filled-in Gefran sensors the Melt pressure transducers filled with sodium-potassium are those able to work at the highest temperatures (i.e. up to 538°C), assuring a total compliance with the maximum levels of accuracy and of reliability.

All the NaK sensors are conform to the RoHS Directive thanks to the sodium-potassium filling fluid, considered a substance “Generally Recognized As Safe“ (GRAS).

The Nak serie Performance Level 'c' version is conform to the European standard EN1114-1 related to the safety requirements for extruders.

Mercury filled (M Series)
The mercury-filled melt pressure sensors, designed by Gefran on an extensometric technology, are suitable to work at high temperature, up to 750°F, assuring a total compliance with the maximum levels of accuracy and of reliability.

The M7 serie Performance Level 'c' version is conform to the European standard EN1114-1 related to the safety requirements for extruders.

ADV200 inverters have a high passband for the velocity and current controller, making them ideal for high-dynamic applications.
Gefran’s system is completely integrated in the ADV200 series of drives for use with asynchronous or brushless motors, thereby eliminating the need for external control racks.

Control functions for line sections can be downloaded as standard applications in ADV200 inverters.
Using a control system integrated in the drive reduces system complexity and eliminates delays and noise when transmitting variables, typical of systems with separate drives and axis boards.

For a precise cut, the carriage must be in the right position and its velocity must be perfectly synchronized. Any difference in velocity generates imperfections in the cut, and may cause stretching or mechanical breakdowns: the flying shear control firmware is specifically designed to adjust the reciprocal position of the carriage and the pipe to be sheared.

The carriage velocity profile is set by an electronic cam based on line speed and shearing length.
Positive and negative accelerations can be set with linear and sinusoidal profile in order to choose the best compromise between reducing the maximum torque required by the motor and the wear of mechanical parts.

The system is simple to commission because the GF-eXpress configurator lets you work on the system parameters of the inverter as well as on the specific parameters of the application.

Use of the Softscope digital oscilloscope with synchronous sampling (sample time 1 ms) also allows simultaneous run-time check of drive and application variables for optimization of the control system.

The K3 Series are pressure sensors for use in high temperature applications where the process temperatures may reach 538°C (1000°F) such as high temperature engineered polymers.
Utilizes standard melt pressure principles and construction, the K Series strain sensing technology is bonded foil strain gage. The uses a near incompressible NAK (Sodium Potassium) for pressure transmission. NaK is FDA recognized safe (GRAS) substance.

Application:

• Processing  special polymers,(538°C /1000°F)
• As for FDA approval,  K series is suitable for Mercury free , food and medical application

Gefran Melt pressure sensors are designed to satisfy every need in plastics processing. Gefran is able to provide to its customers different Melt pressure transducers for different applications at high process temperatures, up to 540°C.
Between the filled-in Gefran sensors the Melt pressure transducers filled with sodium-potassium are those able to work at the highest temperatures (i.e. up to 538°C), assuring a total compliance with the maximum levels of accuracy and of reliability.

All the NaK sensors are conform to the RoHS Directive thanks to the sodium-potassium filling fluid, considered a substance “Generally Recognized As Safe“ (GRAS).
The Nak serie Performance Level 'c' version is conform to the European standard EN1114-1 related to the safety requirements for extruders.

GEFRAN uses the highest-performance materials and the highest-tech components to create custom solutions for your applications.

Gefran GFX4-IR 4-zone modular power controller

The GFX4-IR is a four independent loop controller. This was designed to manage electrical power. GFX4 is a compact unti bounding different technological features for example:

• Controller
• Current transformers
• Solid state relay
• Fuses-holders (option)

This results in a cost saving in terms of space and cabling. The GFX4-IR is managed by a microprocessor that independently controls the four control loops and also runs functions specifically designed to manage singlephase and 3-phase loads, with low and high temperature coefficient, medium and short wave infrared lamps, and transformer primary circuits.

There are multiple activation methods which are all software-configurable, and include:

• Zero crossing with constant cycle time for conventional loads
• Burst firing with variable cycle time for systems with low thermal inertia, medium wave IR lamps
• Single cycle for short wave IR lamps with reduced flickering (half single cycle)
• Phase angle control with current limit for short wave IR lamps, transformer primaries, with assignment of soft start up and soft stop down options with limitation of max. rms current.

GFX4IR runs full diagnostics of current, voltage, and temperature levels:

Current

• Total and partial interrupted load alarm
• "Teach-in" function for self-learning of alarm threshold for interrupted load
• SCR in short circuit alarm
• Load in short circuit or in overcurrent alarm
• Unbalanced 3-phase load alarm

• Phase loss in case of 3-phase configurations
• Check of correct phase sequence alarm

• Overtemperature alarm
• Various feedback functions in the absence of PID control have been developed for complete control of loads in all types of applications:
• Voltage feedback (V) with current limit
• Current feedback (I)
• Power feedback with maximum power limit

By setting simple parameters with a software tool that guides the user to a correct and safe configuration, the configuration is changed. GFX4-IR dialogs with the operator terminals according to the most popular protocols: from the simplest and efficient Modbus to (via a second optional fieldbus communication) the by-now indispensable Profibus DP, CANopen, DeviceNet, Modbus RTU, Ethernet Modbus TCP, Ethernet IP. This product comes with a standard configuration that is simple and quick to modify, for example, to assign different functions to outputs.

Features:

• FIELDBUS

Ideal for control of IR lamps, 30, 60, 80 kW in monophase and triphase

• Controller
• 30, 60, 80kW solid state relay
• Current transformers
• Fuses-holder (option)
• 4 universal main inputs
• 4 heat/cool independent PID
• 4 main output internally wired to the SSR
• 4 auxiliary analog inputs (option)
• 4 configurable output (option):
• relay / logic / TRIAC / continuous
• 2 configurable relay alarm output
• 2 digital inputs
• Standard digital communication:
• Modbus RTU Optional Fieldbus communication:
• Profibus DP, CANopen, Euromap66, DeviceNet, Modbus RTU, Modbus TCP
• Ethernet IP
• DIN rail or panel mounting
